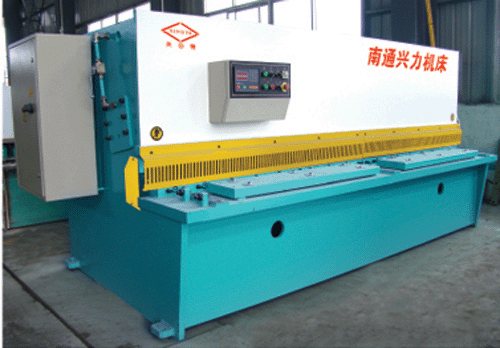

QC12KSeries CNC hydraulic swing beam shear
Performance and characteristics of hydraulic transmission, tilting tool:
. Rack overall welding hard times and durable, the use of nitrogen cylinder return, steady and rapid.
with stepless adjustment function of the stroke, the upper and lower blade edge space with handle regulation, uniform and rapid adjustable blade clearance.
NC NC system and the position encoder is composed of closed-loop control system, high speed, high precision, good stability, can accurately guarantee after the expected size of the displacement precision, at the same time CNC system has a precision compensation function and automatic detection of a variety of additional functions.
技术参数：
|
型号 |
剪板尺寸
(厚×宽) (毫米) |
剪切角 |
行程次数
(次/数) |
后挡料架调节范围 |
主电机 |
|
(T×W) (mm) |
(°) |
time/min |
mm |
kw |
|
QC12Y4×3200 |
4×3200 |
1°30′ |
18 |
20～600 |
5.5 |
|
QC12Y6×2500 |
6×2500 |
1°30′ |
18 |
20～600 |
7.5 |
|
QC12Y6×3200 |
6×3200 |
1°30′ |
14 |
20～600 |
7.5 |
|
QC12Y6×4000 |
6×4000 |
1°30′ |
12 |
20～600 |
7.5 |
|
QC12Y6×5000 |
6×5000 |
1°30′ |
10 |
20～800 |
7.5 |
|
QC12Y6×6000 |
6×6000 |
1°30′ |
7 |
20～800 |
11 |
|
QC12Y8×2500 |
8×2500 |
1°30′ |
16 |
20～600 |
11 |
|
QC12Y8×3200 |
8×3200 |
1°30′ |
13 |
20～600 |
11 |
|
QC12Y8×4000 |
8×4000 |
1°30′ |
9 |
20～600 |
11 |
|
QC12Y8×5000 |
8×5000 |
1°30′ |
7 |
20～800 |
18.5 |
|
QC12Y8×6000 |
8×6000 |
1°30′ |
6 |
20～800 |
18.5 |
|
QC12Y10×2500 |
10×2500 |
1°30′ |
14 |
20～800 |
15 |
|
QC12Y10×3200 |
10×3200 |
1°30′ |
12 |
20～800 |
15 |
|
QC12Y10×4000 |
10×4000 |
1°30′ |
12 |
20～800 |
15 |
|
QC12Y12×2500 |
12×2500 |
1°30′ |
12 |
20～800 |
15 |
|
QC12Y12×3200 |
12×3200 |
1°30′ |
10 |
20～800 |
18.5 |
|
QC12Y12×4000 |
12×4000 |
1°30′ |
8 |
20～800 |
18.5 |
|
QC12Y12×5000 |
12×5000 |
1°30′ |
7 |
20～1000 |
22 |
|
QC12Y12×6000 |
12×6000 |
1°30′ |
6 |
20～1000 |
22 |
|
QC12Y12×8000 |
12×8000 |
1°30′ |
5 |
20～1000 |
22 |
|
QC12Y16×2500 |
16×2500 |
2° |
12 |
20～650 |
18.5 |
|
QC12Y16×3200 |
16×3200 |
2° |
10 |
20～800 |
22 |
|
QC12Y16×4000 |
16×4000 |
2° |
8 |
20～800 |
22 |
|
QC12Y20×2500 |
20×2500 |
2°30′ |
9 |
20～1000 |
30 |
|
QC12Y20×3200 |
20×3200 |
2°30′ |
8 |
20～1000 |
30 |
|
QC12Y20×4000 |
20×4000 |
2°30′ |
5 |
20～1000 |
30 |
|
QC12Y20×6000 |
20×6000 |
2°30′ |
3 |
20～000 |
37 |
|
QC12Y25×2500 |
25×2500 |
2°30′ |
8 |
20～1000 |
37 |
|
QC12Y25×3200 |
25×3200 |
2°30′ |
7 |
20～1000 |
37 |
|
QC12Y25×4000 |
25×4000 |
2°30′ |
5 |
20～1000 |
37 |
|
QC12Y32×2500 |
32×2500 |
3° |
5 |
20～1000 |
45 |
|
QC12Y32×3200 |
32×3200 |
3° |
4 |
20～000 |
45 |
|
QC12Y40×2500 |
40×2500 |
4° |
4 |
20～1000 |
55 |
|
QC12Y40×3200 |
40×3200 |
4° |
3 |
20～1000 |
55 |
|
QC12Y50×3000 |
50×3000 |
3° |
4 |
|
90×3 |
|
QC12Y50×6000 |
50×6000 |
3° |
2 |
|
90×5 |
|
QC12Y60×3500 |
60×3500 |
3°30′ |
4 |
|
90×4 |
