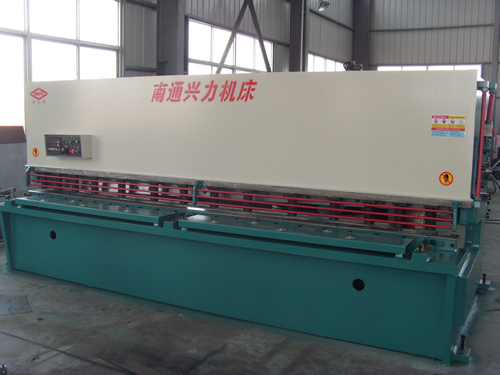

Features: use of welded steel structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance. Cutting edge clearance adjustment with signs indicating light, rapid adjustment. With the lights on the line illumination device, and can stepless adjustment of the tool carrier itinerary. Work zone of the fence type safety protection device. After the expected size and shear time digital display device.

规格型号	可剪板厚	可剪板宽	剪切角	行程次数	后挡料架范围	主电机	外形尺寸
	mm	mm	(°)	min-1	mm	KW	mm
4×2500	4	2500	1°30′	20	20－500	5.5	3110×1500×1450
4×3200	4	3200	1°30′	18	20－500	5.5	3840×1685×1620
4×4000	4	4000	1°30′	15	20－500	5.5	4640×1850×1700
6×2500	6	2500	1°30′	18	20－500	7.5	3130×1530×1600
6×3200	6	3200	1°30′	15	20－500	7.5	3840×1675×1620
6×4000	6	4000	1°30′	14	20－500	7.5	4630×1800×1620
6×5000	6	5000	1°30′	8	20－500	11	5770×2380×2255
6×6000	6	6000	1°30′	7	20－500	11	6810×2530×3250
8×2500	8	2500	1°30′	10	20－500	11	3140×1665×1620
8×3200	8	3200	1°30′	9	20－500	11	3587×1800×1650
8×4000	8	4000	1°30′	8	20－600	11	4667×1910×1650
8×5000	8	5000	1°30′	7	20－600	15	5612×2600×2350
10×2500	10	2500	1°30′	10	20－600	15	3200×1850×1760
10×3200	10	3200	1°30′	10	20－600	15	3900×1900×1760
12×2500	12	2500	2°	9	20－800	18.5	3210×1920×1850
12×3200	12	3200	2°	8	20－800	18.5	3910×2040×1920
12×4000	12	4000	2°	7	20－800	18.5	4725×2000×2040
12×5000	12	5000	2°	8	20－800	22	5750×2260×2240
16×2500	16	2500	2°30′	8	20－800	22	3300×2150×1880
16×3200	16	3200	2°30′	8	20－800	22	4105×2325×2220
16×4000	16	4000	2°30′	7	20－800	22	4905×2385×2250
20×2500	20	2500	2°30′	6	20－800	30	3400×2350×2700
20×3200	20	3200	2°30′	5	20－800	30	4100×2350×2730
20×4000	20	4000	2°30′	5	20－800	30	4900×2350×2760
25×2500	25	2500	3°	5	20－800	37	3480×2410×2750
25×3200	25	3200	3°	5	20－800	37	4180×2410×2690
25×4000	25	4000	3°	5	20－800	37	4985×2410×2690
32×2500	32	2500	3°30′	4	20－800	45	3300×3450×3200
32×3200	32	3200	3°30′	4	20－800	45	4197×3450×3250
40×2500	40	2500	3°30′	3	20－800	55	3300×3770×3600



以上参数如有修改恕不另行通知
